Digital, Portable, hand held unit with back lit
LCD readout.
Used on both EFI & carburetted vehicles.
Quick to connect, power plugs into any 12 volt
source.
Reads ratios between 10.0:1 and 30.0:1
Temperature Compensating Circuit
COMPLETE WITH 44 MINUTES OF DATA LOGGING
LM-1 Air Fuel Ratio Meter & Heated Wide band sensor.
Small, compact, quick and super accurate the
LM-1
is designed to be highly transportable which makes it a joy to use when tuning information
is needed on the road or Dyno.
THE DYNO SHOP is proud to advise that we have now released a
professional quality Air/Fuel Ratio Meter. This portable unit uses a highly
sophisticated Fast Acting, Wide Band Heated Oxygen Sensor, and is able to provide instant
Air/Fuel readings for (Petrol) Gasolines. The unit gives
direct A/F readings. (ie 13.1:1) The design of the unit & the fact that it runs off 12
volts (lighter plug or power supply) allows you to do your testing on the road or at the
track just as easily as on the Dyno, or in a work shop. The LM-1 reads Air/Fuel ratios
between 10.0:1 and 28.0:1.
The highly accurate probe is rated at 500hr's life (unleaded fuel),
(also works with leaded fuel, with shorter life span) meaning running cost for this unit
are remarkably economical..
The instrument can sample and store 6 channels of data-
air-fuel-ratio and up to 5 other sensor data channels- internally in operation
for later analysis on a personal computer. At a sampling rate of 12
samples/second the instrument can store up to 44 minutes worth of data in
non-volatile memory. The data can be downloaded to a personal computer using a
standard serial port and viewed/analyzed by the included LogWorks software or
any standard spreadsheet program:
The LM-1 also features two analog outputs to connect to analog gauges, dyno
computers, ECUs, piggyback controllers, and other devices with analog inputs.
Analog output 1 comes setup from the factory ready for narrowband simulation;
analog output 2 is configured as 1 volt = 10 AFR (.6 lambda) and 2 volts = 20
AFR (1.3 lambda). With the provided LM Programmer software these analog outputs
may also be configured by the user.
The instrument can sample and store 6 channels of data- air-fuel-ratio and up to
5 other sensor data channels- internally in operation for later analysis on a
personal computer. At a sampling rate of 12 samples/second the instrument
can store up to 44 minutes worth of
data in non-volatile memory. The data can be downloaded to a personal computer
using a standard serial port and viewed/analyzed by the included LogWorks
software or any standard spreadsheet program:
The LM-1 also features two analog outputs to connect to analog
gauges, dyno computers, ECUs, piggyback controllers, and other devices with
analog inputs. Analog output 1 comes setup from the factory ready for narrowband
simulation; analog output 2 is configured as 1 volt = 10 AFR (.6 lambda) and 2
volts = 20 AFR (1.3 lambda). With the provided LM Programmer software these
analog outputs may also be configured by the user.

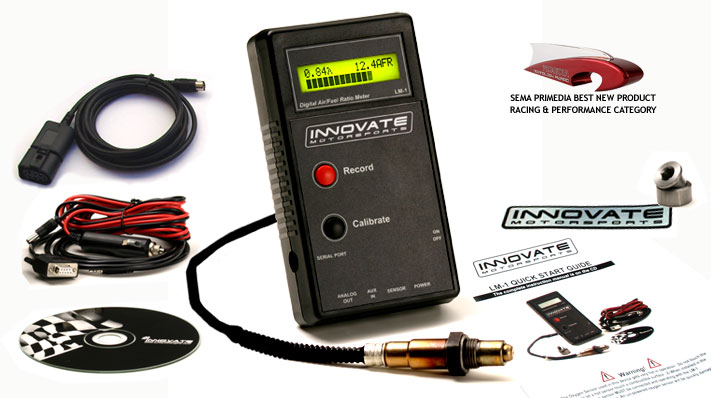

The LM-1 comes complete with Display unit (pictured) cables,
Fast acting Heated Wide Band Oxygen Sensor
Used in car or in conjunction with a chassis or engine Dyno the
LM-1
is the tuners best friend. The pure speed makes mixture related engine failures on the Dyno,or road, a thing of the past.
This is not a toy but a precision instrument used for years by
tuners, dyno shop owners, and race teams worldwide.
