XT ULTRA LAP TIMER FINALLY AN AFFORDABLE IN CAR LAP TIMER WITH ALL THE RIGHT FEATURES

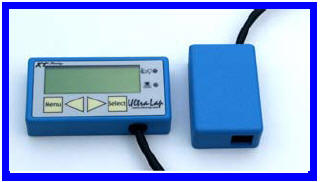

Ultra-Lap Receiver

No False triggering from other lap timer transmitters: Uses different infrared  signal than old Hot Lap systems. Also you can set the receiver to ignore signals from 1 sec to 250 sec (over 4 minutes )

Simple consistent, 4-button user interface

Logs up to 2000 laps,     Downloadable to PC

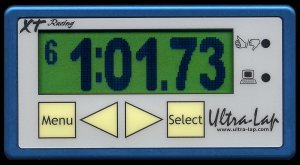

Extra-large, bold lap times are 0.6" (15mm) in height for easy visibility

Receiver measures 3 3/8 " wide, 1 7/8" tall, 5/8" thick

Can show 1-99 lap count up or down

AT THE END OF A  LAP A FLASHING LED INDICATES IF IT WAS FASTER THAN THE PREVIOUS

Support for true split times multiple transmitters may be placed around the track and intermediate times within each lap will be recorded. Our transmitter has an additional switch that selects between "start/finish" and "split" you set up one transmitter in the start/finish mode and any number of other transmitters around the track in split mode. The Ultra-Lap can tell the difference between the two because a different frequency of infrared pulsing is used. The "start/finish" frequency will still be compatible with AIM devices.
Auto power-down for extended battery life
Unique "auto turn-on" feature "turn it on and forget it" turn it on first thing on the morning of a race day and never worry about missing a lap again. The unit will auto turn-off but will automatically turn back on when it crosses the transmitter beam.
Accurate to 1/100 second per lap
Store approximately 2,000 laps/split times for many, a full season of racing

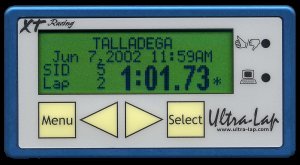

Each stored lap contains the following information:

Time of the lap, accurate to 1/100 second
Date and time of the lap
The track (or other identification) of the lap
A unique session identifier (to differentiate each race or practice session)
An indication if was the best lap of that session

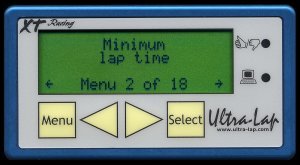

Extensive customization via easy-to-use English menus:

Laps per race/session: 1-99 or do not count (lap countdown)
Minimum lap time: 1-250 seconds
Lap hold time (time the lap display is frozen at the end of a lap): 1-250 seconds
Display contrast/brightness setting: 31 levels
Enter name of track or other identification (stored with each lap): up to 12 characters
Option to display, at end of race, the first lap of session, the last lap of session or the fastest lap of session
Auto turn-off time: 1-30 minutes
Enable or disable the auto-turn-on feature
Easily set the current date and time
Enter 1 or 2 lines of personalization information: up to 20 characters per line
Quick deletion of all stored laps
Device reset to factory settings

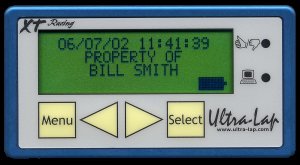

Device can be personalized with 2 lines of data: e.g.,
PROPERTY OF
BILL SMITH
This information shows up on the main screen so if the unit is misplaced, its owner can be identified


Main screen shows date and time
Main screen has a battery level indicator that shows when the batteries need to be replaced
Uses 1 readily-available inexpensive AA battery
Ability to download all lap data to a PC using the optional  download module. Includes software to organize, store and graph lap data.

Ultra-Lap Transmitter

Bright blue for easy visibility
Extra powerful transmissions with 8 infrared LEDs. Runs on either 4 internal AA batteries (not included) or an external 12V lead-acid battery for extra long life and extra power.
6' external power cable (included) with alligator clips for quick and easy connection to a lead-acid battery
Low battery indicator blinks green when batteries are good, red when batteries are low

What's new?

Support for true split times multiple transmitters may be placed around the track and intermediate times within each lap will be recorded. Our transmitter has an additional switch that selects between "start/finish" and "split" you set up one transmitter in the start/finish mode and any number of other transmitters around the track in split mode. The Ultra-Lap can tell the difference between the two because a different frequency of infrared pulsing is used. The "start/finish" frequency will still be compatible with AIM devices. The "split" frequency will not trigger the AIM devices.
Much thinner receiver (the box with the display) .7" thick as opposed to 1.15" thick.
All enclosures (I/R receiver, transmitter, and USB download, in addition to main receiver) are machined billet aluminum and powder coated. This new finish is much tougher and abrasion resistant.
Records ambient temperature for each session.
Tracks may be picked from a list so you don't have to re-enter a track name when you are switching from one track to another. Saves on tedious data entry.
Displays average lap time for each session, as well as best and worst lap time.
Lower power consumption for longer battery life. Uses one AA battery instead of two AAA batteries.
Improved infrared sensitivity.
USB download module as opposed to RS-232. Self-powered by the USB module so it does not require A bulky power transformer.

RECEIVER ONLY       $189 US

RECEIVER & TRANSMITTER        $239 US

RECEIVER, TRANSMITTER & USB DOWNLOAD MODULE     $279 US



      EXTRA TRANSMITTER (FOR SETTING UP SPLIT TIMES)  US 59.00
